emqx/doc/design/ClientSession.md

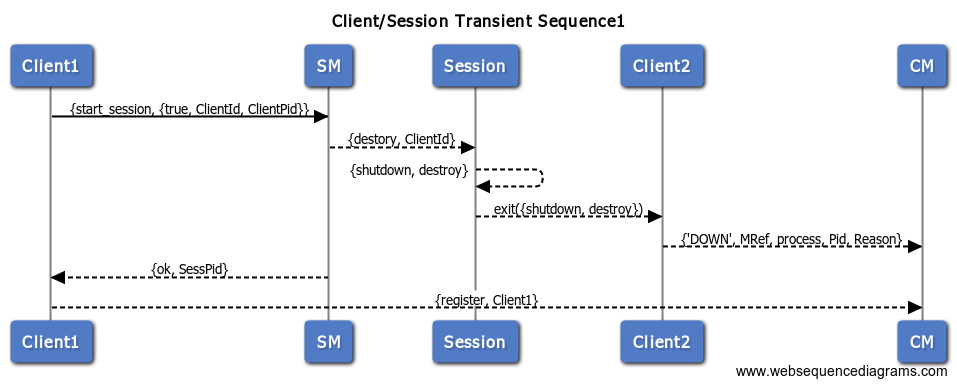

Transient Client/Session Sequence1

Client1->SM:  {start_session, {true, ClientId, self()}}
SM-->Session: {destory, ClientId}
Session-->Session: {shutdown, destroy}
Session-->Client2: exit({shutdown, destroy})
Client2-->CM: {'DOWN', MRef, process, Pid, Reason}
SM-->Client1: {ok, SessPid}
Client1-->CM: {register, Client1}

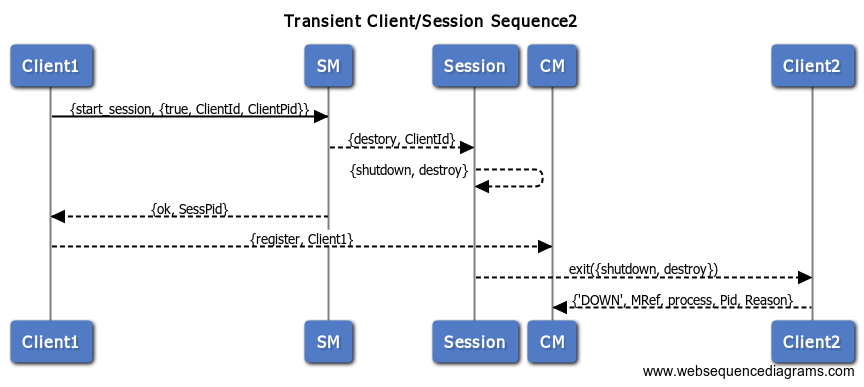

Transient Client/Session Sequence2

Client1->SM:  {start_session, {true, ClientId, self()}}
SM-->Session: {destory, ClientId}
Session-->Session: {shutdown, destroy}
SM-->Client1: {ok, SessPid}
Client1-->CM: {register, Client1}
Session-->Client2: exit({shutdown, destroy})
Client2-->CM: {'DOWN', MRef, process, Pid, Reason}

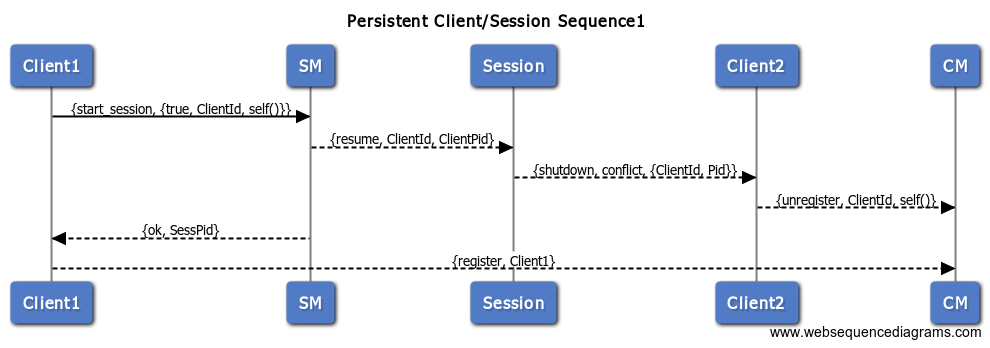

Persistent Client/Session Sequence1

Client1->SM: {start_session, {true, ClientId, self()}}
SM-->Session: {resume, ClientId, ClientPid}
Session-->Client2: {shutdown, conflict, {ClientId, Pid}}
Client2-->CM: {unregister, ClientId, self()}
SM-->Client1: {ok, SessPid}
Client1-->CM: {register, Client1}

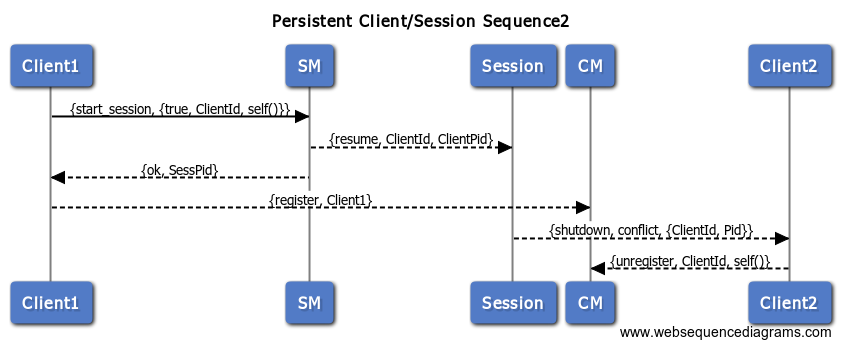

Persistent Client/Session Sequence2

Client1->SM: {start_session, {true, ClientId, self()}}
SM-->Session: {resume, ClientId, ClientPid}
SM-->Client1: {ok, SessPid}
Client1-->CM: {register, Client1}
Session-->Client2: {shutdown, conflict, {ClientId, Pid}}
Client2-->CM: {unregister, ClientId, self()}
